Angular - Property Binding

Property binding is a type of Data Binding in which we bind a property of a DOM. Its purpose is to show or hide a DOM element, or simply manipulate the DOM. It helps to set the value for the property of the HTML element or angular component.

Data binding is a mechanism that allows flow of data between component class to template and template to component class.

How to use Property Binding?

To use property binding, we enclose the property of an HTML element or a component withing square brackets [...] as shown below −

 <element-or-component [<property name>]="<template variable>"> <!-- content --> </element-orcomponent>

The value of the property is basically a template variable. While generating the view from the template, angular will set the value of the property by processing the template variable.

Example

Let's see how to set value for the property, src in img HTML element.

Step 1: Declare a variable, image in the component and set a value.

 image: string = 'images/my-image.jpg'

Step 2: Set the image variable to the src property (enclose it using square bracket) of the img HTML element in the template as shown below −

 <img [src]="image" />

Attributes of HTML element

Angular exposes attributes of the common HTML element with a matching property.

 <input type="text" [value]="val" />

Here, value is the property of the HtmlInputElement exposed by angular.

For attributes with multiple words, the corresponding property name will be converted into camelCase format. for example, the colspan attribute's corresponding angular property is colSpan.

The Boolean Property

Boolean property of a HTML element/component does have value. Few examples of boolean property available in the HTML element are disabled, required and readonly. For boolean property, we can set a boolean variable for the property. The boolean value determines the presence / absence of property in the HTML element/component.

Example

Let us see how to set required property in input HTML element.

Step 1: Declare a variable, isRequired in the component and set either TRUE or FALSE.

 isRequired: boolean = true

Step 2: Set the isRequired variable to the required property (enclose it using square bracket) of the input HTML element in the template as shown below −

 <input type="text" name="Username" [required]="isRequired" />

Step 3: The output of the template will include required attribute because the value of the isRequired variable is true

 <input type="text" name="Username" required />

Implementing Property Binding

Let us create a simple registration form to understand property binding. Our registration form will have three input field as shown below and a button to submit the registraion form.

• Username
• Password
• Confirm password

Step 1: Create a new application, my-app using angular CLI as shown below −

 ng new my-app

Step 2: Create a new registration form component, RegisterForm using angular CLI as shown below −

 ng generate component RegisterForm

Step 3: Open the registration form components template and a user with username, password and confirm password.

 <div> <form method="post"> <div class="container"> <label for="username"><b>Username</b></label> <input type="text" name="username" required> <label for="password"><b>Password</b></label> <input type="password" name="password" required> <label for="confirm_password"><b>Confirm Password</b></label> <input type="password" name="confirm_password" required> <button type="submit">Register</button> </div> </form> </div>

Step 4: Open the registration form components style and style the form using CSS as shown below −

 .container { padding: 15px; } input[type=text], input[type=password] { width: 100%; padding: 10px 20px; margin: 10px 0; display: inline-block; border: 1px solid #ccc; box-sizing: border-box; } button { background-color: blue; color: white; padding: 15px 20px; margin: 10px 0; border: none; cursor: pointer; width: 100%; }

Step 5: Include our registration form component in the app template file, app.component.html.

 <app-register-form />

Step 6: Run the application and test the registration form.

Step 7: Next, we will try to set the placeholder text for all input field using attributes binding. Add three member variable in the component to represent the placeholder text for username, password and confirm password input field.

 placeholder1: string = "Enter username" placeholder2: string = "Enter password" placeholder3: string = "Repeat password"

Step 8: Assign the above declared components member variable to the placeholder attributes of username, password and confirm password input accordingly in the template using [placeholder] property as shown below −

 <input type="text" [placeholder]="placeholder1" name="username" required> <input type="password" [placeholder]="placeholder2" name="password" required> <input type="password" [placeholder]="placeholder3" name="confirm_password" required>

Here,

• attr.placeholder represents the placeholder attribute.

Step 9: The complete listing of the component is as follows:

 import { Component } from '@angular/core'; @Component({ selector: 'app-login-form', templateUrl: './register-form.component.html', styleUrls: ['./register-form.component.css'] }) export class RegisterFormComponent { placeholder1: string = "Enter username" placeholder2: string = "Enter password" placeholder3: string = "Repeat password" }

Step 10: The complete listing of the components template is as follows:

 <div> <form method="post"> <div class="container"> <label for="username"><b>Username</b></label> <input type="text" [placeholder]="placeholder1" name="username" required> <label for="password"><b>Password</b></label> <input type="password" [placeholder]="placeholder2" name="password" required> <label for="confirm_password"><b>Confirm Password</b></label> <input type="password" [placeholder]="placeholder3" name="confirm_password" required> <button type="submit">Register</button> </div> </form> </div>

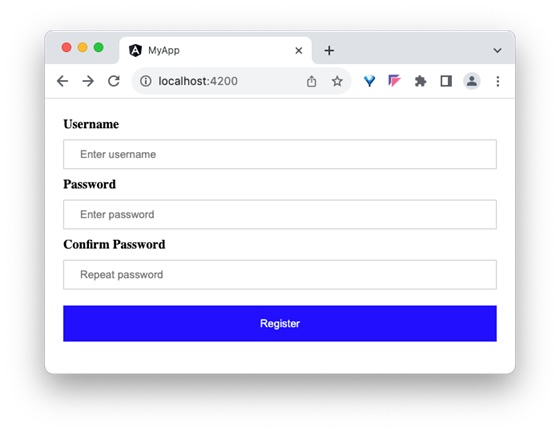

Step 11: Next, run the application and check the output.

Conclusion

Property binding provides option to set dynamic value for HTML elements and components. It supports boolean property as well. It is quite easy and intutive.
