PgQ Generic high-performance queue for PostgreSQL

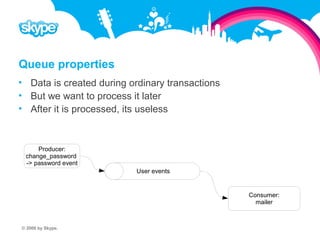

Queue properties  Data is created during ordinary transactions  But we want to process it later  After it is processed, its useless Producer: change_password -> password event User events Consumer: mailer © 2008 by Skype.

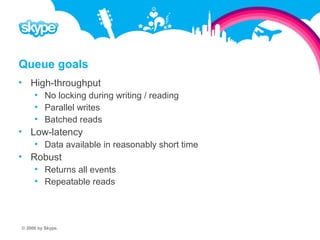

Queue goals  High-throughput  No locking during writing / reading  Parallel writes  Batched reads  Low-latency  Data available in reasonably short time  Robust  Returns all events  Repeatable reads © 2008 by Skype.

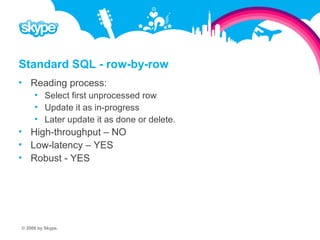

Standard SQL - row-by-row  Reading process:  Select first unprocessed row  Update it as in-progress  Later update it as done or delete.  High-throughput – NO  Low-latency – YES  Robust - YES © 2008 by Skype.

Standard SQL – rotated tables  Reading process:  Rename current event table  Create new empty event table  Read renamed table  High-throughput – YES  Low-latency – NO  Robust - YES © 2008 by Skype.

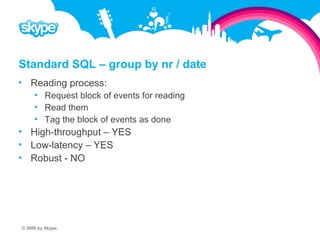

Standard SQL – group by nr / date  Reading process:  Request block of events for reading  Read them  Tag the block of events as done  High-throughput – YES  Low-latency – YES  Robust - NO © 2008 by Skype.

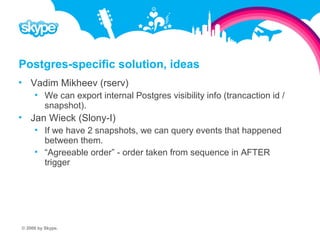

Postgres-specific solution, ideas  Vadim Mikheev (rserv)  We can export internal Postgres visibility info (trancaction id / snapshot).  Jan Wieck (Slony-I)  If we have 2 snapshots, we can query events that happened between them.  “Agreeable order” - order taken from sequence in AFTER trigger © 2008 by Skype.

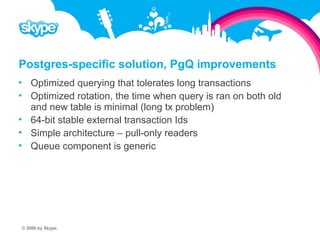

Postgres-specific solution, PgQ improvements  Optimized querying that tolerates long transactions  Optimized rotation, the time when query is ran on both old and new table is minimal (long tx problem)  64-bit stable external transaction Ids  Simple architecture – pull-only readers  Queue component is generic © 2008 by Skype.

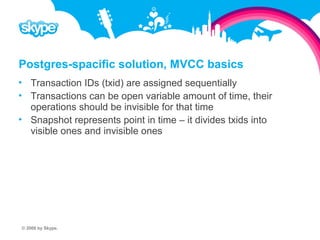

Postgres-spacific solution, MVCC basics  Transaction IDs (txid) are assigned sequentially  Transactions can be open variable amount of time, their operations should be invisible for that time  Snapshot represents point in time – it divides txids into visible ones and invisible ones © 2008 by Skype.

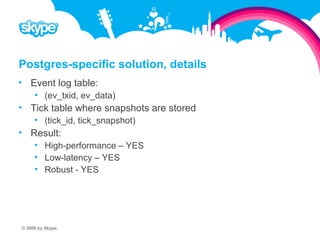

Postgres-specific solution, details  Event log table:  (ev_txid, ev_data)  Tick table where snapshots are stored  (tick_id, tick_snapshot)  Result:  High-performance – YES  Low-latency – YES  Robust - YES © 2008 by Skype.

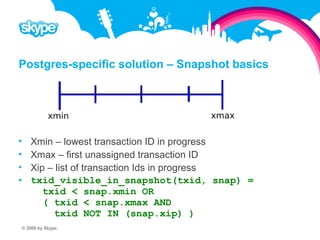

Postgres-specific solution – Snapshot basics  Xmin – lowest transaction ID in progress  Xmax – first unassigned transaction ID  Xip – list of transaction Ids in progress  txid_visible_in_snapshot(txid, snap) = txid < snap.xmin OR ( txid < snap.xmax AND txid NOT IN (snap.xip) ) © 2008 by Skype.

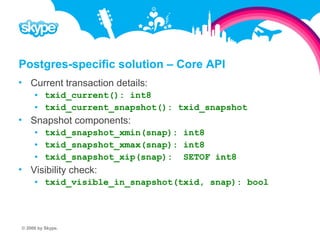

Postgres-specific solution – Core API  Current transaction details:  txid_current(): int8  txid_current_snapshot(): txid_snapshot  Snapshot components:  txid_snapshot_xmin(snap): int8  txid_snapshot_xmax(snap): int8  txid_snapshot_xip(snap): SETOF int8  Visibility check:  txid_visible_in_snapshot(txid, snap): bool © 2008 by Skype.

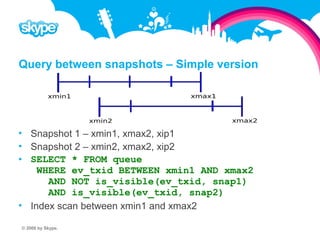

Query between snapshots – Simple version  Snapshot 1 – xmin1, xmax2, xip1  Snapshot 2 – xmin2, xmax2, xip2  SELECT * FROM queue WHERE ev_txid BETWEEN xmin1 AND xmax2 AND NOT is_visible(ev_txid, snap1) AND is_visible(ev_txid, snap2)  Index scan between xmin1 and xmax2 © 2008 by Skype.

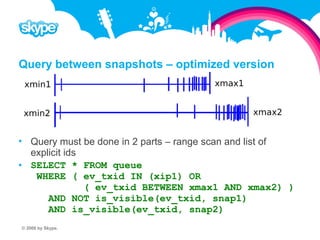

Query between snapshots – optimized version  Query must be done in 2 parts – range scan and list of explicit ids  SELECT * FROM queue WHERE ( ev_txid IN (xip1) OR ( ev_txid BETWEEN xmax1 AND xmax2) ) AND NOT is_visible(ev_txid, snap1) AND is_visible(ev_txid, snap2) © 2008 by Skype.

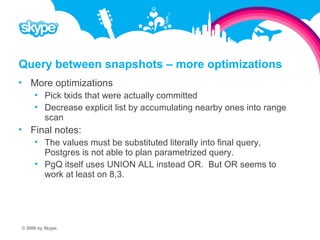

Query between snapshots – more optimizations  More optimizations  Pick txids that were actually committed  Decrease explicit list by accumulating nearby ones into range scan  Final notes:  The values must be substituted literally into final query, Postgres is not able to plan parametrized query.  PgQ itself uses UNION ALL instead OR. But OR seems to work at least on 8,3. © 2008 by Skype.

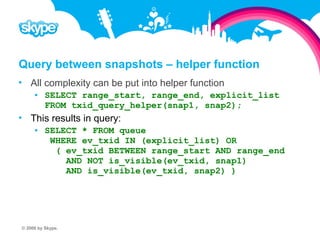

Query between snapshots – helper function  All complexity can be put into helper function  SELECT range_start, range_end, explicit_list FROM txid_query_helper(snap1, snap2);  This results in query:  SELECT * FROM queue WHERE ev_txid IN (explicit_list) OR ( ev_txid BETWEEN range_start AND range_end AND NOT is_visible(ev_txid, snap1) AND is_visible(ev_txid, snap2) ) © 2008 by Skype.

Take a deep breath. There is PgQ.

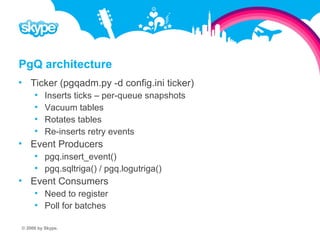

PgQ architecture  Ticker (pgqadm.py -d config.ini ticker)  Inserts ticks – per-queue snapshots  Vacuum tables  Rotates tables  Re-inserts retry events  Event Producers  pgq.insert_event()  pgq.sqltriga() / pgq.logutriga()  Event Consumers  Need to register  Poll for batches © 2008 by Skype.

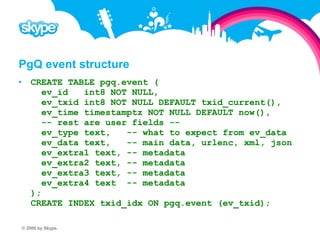

PgQ event structure  CREATE TABLE pgq.event ( ev_id int8 NOT NULL, ev_txid int8 NOT NULL DEFAULT txid_current(), ev_time timestamptz NOT NULL DEFAULT now(), -- rest are user fields -- ev_type text, -- what to expect from ev_data ev_data text, -- main data, urlenc, xml, json ev_extra1 text, -- metadata ev_extra2 text, -- metadata ev_extra3 text, -- metadata ev_extra4 text -- metadata ); CREATE INDEX txid_idx ON pgq.event (ev_txid); © 2008 by Skype.

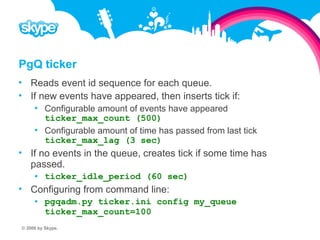

PgQ ticker  Reads event id sequence for each queue.  If new events have appeared, then inserts tick if:  Configurable amount of events have appeared ticker_max_count (500)  Configurable amount of time has passed from last tick ticker_max_lag (3 sec)  If no events in the queue, creates tick if some time has passed.  ticker_idle_period (60 sec)  Configuring from command line:  pgqadm.py ticker.ini config my_queue ticker_max_count=100 © 2008 by Skype.

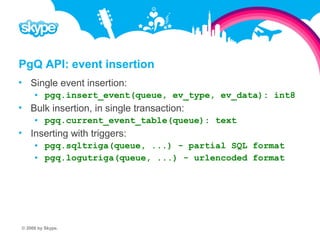

PgQ API: event insertion  Single event insertion:  pgq.insert_event(queue, ev_type, ev_data): int8  Bulk insertion, in single transaction:  pgq.current_event_table(queue): text  Inserting with triggers:  pgq.sqltriga(queue, ...) - partial SQL format  pgq.logutriga(queue, ...) - urlencoded format © 2008 by Skype.

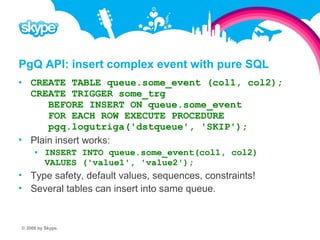

PgQ API: insert complex event with pure SQL  CREATE TABLE queue.some_event (col1, col2); CREATE TRIGGER some_trg BEFORE INSERT ON queue.some_event FOR EACH ROW EXECUTE PROCEDURE pgq.logutriga('dstqueue', 'SKIP');  Plain insert works:  INSERT INTO queue.some_event(col1, col2) VALUES ('value1', 'value2');  Type safety, default values, sequences, constraints!  Several tables can insert into same queue. © 2008 by Skype.

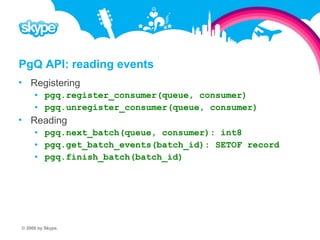

PgQ API: reading events  Registering  pgq.register_consumer(queue, consumer)  pgq.unregister_consumer(queue, consumer)  Reading  pgq.next_batch(queue, consumer): int8  pgq.get_batch_events(batch_id): SETOF record  pgq.finish_batch(batch_id) © 2008 by Skype.

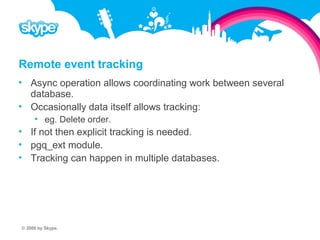

Remote event tracking  Async operation allows coordinating work between several database.  Occasionally data itself allows tracking:  eg. Delete order.  If not then explicit tracking is needed.  pgq_ext module.  Tracking can happen in multiple databases. © 2008 by Skype.

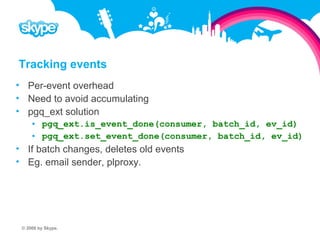

Tracking events  Per-event overhead  Need to avoid accumulating  pgq_ext solution  pgq_ext.is_event_done(consumer, batch_id, ev_id)  pgq_ext.set_event_done(consumer, batch_id, ev_id)  If batch changes, deletes old events  Eg. email sender, plproxy. © 2008 by Skype.

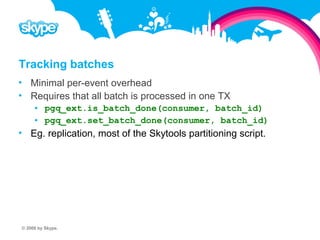

Tracking batches  Minimal per-event overhead  Requires that all batch is processed in one TX  pgq_ext.is_batch_done(consumer, batch_id)  pgq_ext.set_batch_done(consumer, batch_id)  Eg. replication, most of the Skytools partitioning script. © 2008 by Skype.

Use-case: row counter for count(*) speedup  import pgq class RowCounter(pgq.Consumer): def process_batch(self, db, batch_id, ev_list): tbl = self.cf.get('table_name'); delta = 0 for ev in ev_list: if ev.type == 'I' and ev.extra1 == tbl: delta += 1 elif ev.type == 'D' and ev.extra1 == tbl: delta -= 1 ev.tag_done() q = 'select update_stats(%s, %s)' db.cursor().execute(q, [tbl, delta]) RowCounter('row_counter', 'db', sys.argv[1:]).start() [row_counter] db = ... pgq_queue_name = ... table_name = ... job_name = ... logfile = ... pidfile = ... © 2008 by Skype.

Use-case: copy queue to different database import pgq class QueueMover(pgq.RemoteConsumer): def process_remote_batch(self, db, batch_id, ev_list, dst_db): # prepare data rows = [] for ev in ev_list: rows.append([ev.type, ev.data, ev.time]) ev.tag_done() # insert data fields = ['ev_type', 'ev_data', 'ev_time'] curs = dst_db.cursor() dst_queue = self.cf.get('dst_queue_name') pgq.bulk_insert_events(curs, rows, fields, dst_queue) script = QueueMover('queue_mover', 'src_db', 'dst_db', sys.argv[1:]) script.start() © 2008 by Skype.

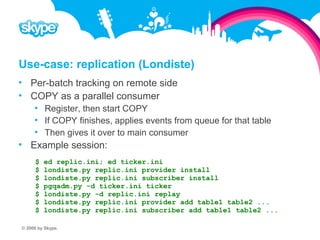

Use-case: replication (Londiste)  Per-batch tracking on remote side  COPY as a parallel consumer  Register, then start COPY  If COPY finishes, applies events from queue for that table  Then gives it over to main consumer  Example session: $ ed replic.ini; ed ticker.ini $ londiste.py replic.ini provider install $ londiste.py replic.ini subscriber install $ pgqadm.py -d ticker.ini ticker $ londiste.py -d replic.ini replay $ londiste.py replic.ini provider add table1 table2 ... $ londiste.py replic.ini subscriber add table1 table2 ... © 2008 by Skype.

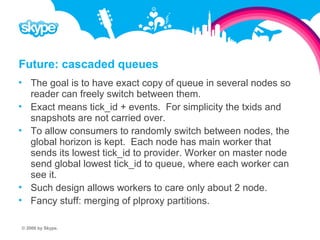

Future: cascaded queues  The goal is to have exact copy of queue in several nodes so reader can freely switch between them.  Exact means tick_id + events. For simplicity the txids and snapshots are not carried over.  To allow consumers to randomly switch between nodes, the global horizon is kept. Each node has main worker that sends its lowest tick_id to provider. Worker on master node send global lowest tick_id to queue, where each worker can see it.  Such design allows workers to care only about 2 node.  Fancy stuff: merging of plproxy partitions. © 2008 by Skype.

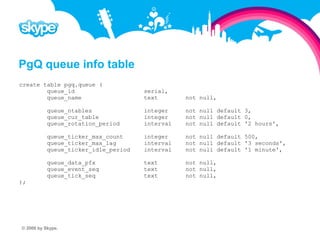

PgQ queue info table create table pgq.queue ( queue_id serial, queue_name text not null, queue_ntables integer not null default 3, queue_cur_table integer not null default 0, queue_rotation_period interval not null default '2 hours', queue_ticker_max_count integer not null default 500, queue_ticker_max_lag interval not null default '3 seconds', queue_ticker_idle_period interval not null default '1 minute', queue_data_pfx text not null, queue_event_seq text not null, queue_tick_seq text not null, ); © 2008 by Skype.
